SINTERED IRON BUSHING 06X10X10

Graphite Iron Bushing – Sintered Iron Bushing 06×10×10

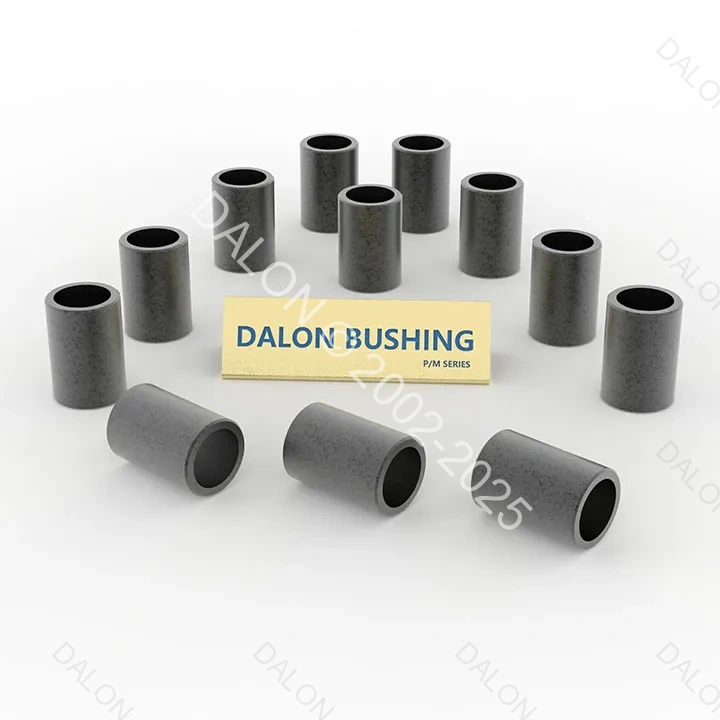

DALON’s 06×10×10 graphite iron bushing is a precision sintered iron component engineered for rotational support in compact mechanical systems. Manufactured via powder metallurgy, this bushing features graphite infusion for self-lubricating performance under dry or marginally lubricated conditions. With dimensions of 6 mm inner diameter, 10 mm outer diameter, and 10 mm length, it fits tightly in confined housings such as gearboxes, tools, pumps, and small motors.

Its graphite content allows minimal maintenance while resisting wear and deformation, making it ideal for applications where consistent low-friction movement and long service life are essential.

Key Features

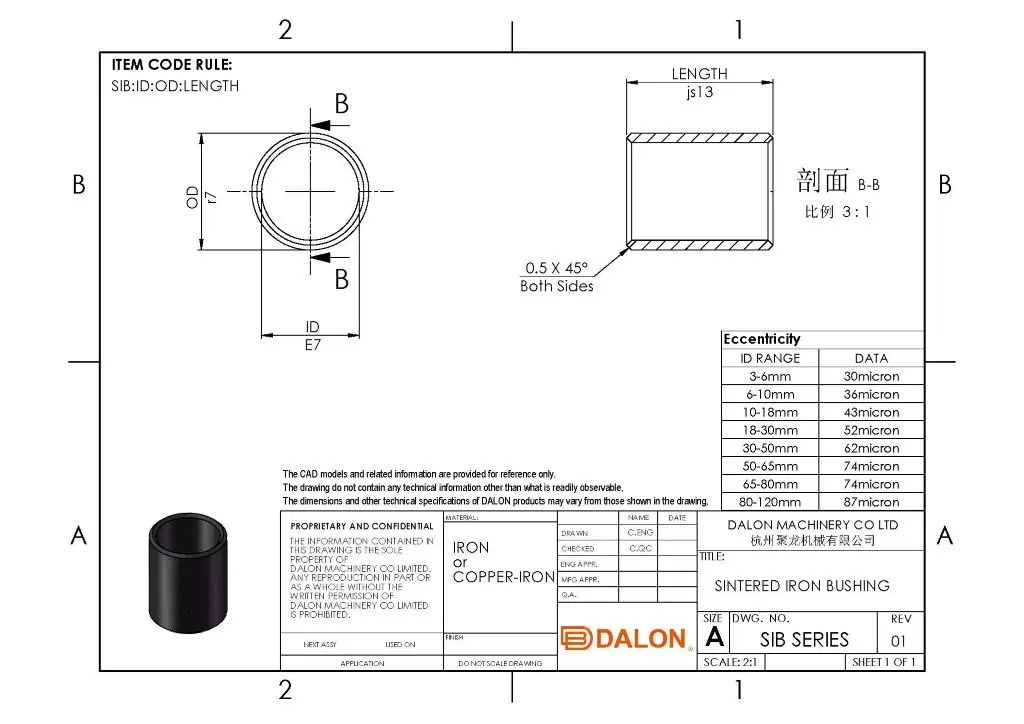

• Dimensions: 6 mm ID × 10 mm OD × 10 mm length

• Material: Sintered iron infused with graphite

• Self-lubricating with embedded solid lubricant

• Corrosion- and wear-resistant for extended use

• Designed for dry running or light lubrication

• Cost-effective alternative to bronze bearings

Applications

• Power tools and motor bushings

• Small pump shafts and drive units

• Agricultural and garden machinery

• Rotary equipment in household appliances

• Electric tools and hobby motors

Why Choose DALON
DALON is an ISO 9001:2015-certified manufacturer specializing in sintered bearings and bushings. We offer:

• Custom production based on your dimensions and tolerances

• Design-for-manufacturing assistance and material optimization

• OEM support with both metric and imperial specifications

• Reliable supply chain with stable pricing and quality control

• Standard tooling delivery in ~30 days; custom molds and parts in 35–40 days including tooling

• Low MOQ for custom bushings – contact us for specific volume requirements

FAQ – Frequently Asked Questions

Q1: What is a graphite iron bushing used for?
Graphite iron bushings are commonly used in compact rotating assemblies to reduce friction and wear without additional lubrication, especially in tools, pumps, and electric motors.

Q2: Is this bushing self-lubricating?
Yes. The sintered iron is impregnated with graphite which acts as a dry lubricant, making it ideal for applications with limited access for grease or oil.

Q3: What are the advantages of graphite over oil-impregnated bronze?
Graphite bushings perform better at higher temperatures and are more resistant to drying out. They are also more economical in some heavy-duty or intermittent-use systems.

Q4: Can I order a custom size?
Absolutely. DALON supports full customization including outer/inner diameter, length, flange types, and material mixes. Contact our team for design consultation.

Q5: What is the standard delivery time for custom bushings?
Typical lead time for custom bushings (including mold design and production) is 35–40 days. For in-stock or existing tooling, lead time is around 30 days.

Q6: What’s the minimum order quantity for a custom bushing?
This depends on the part size and application. Please contact DALON with your specifications and we'll advise the MOQ accordingly.

Q7: What is the difference between graphite iron and oil-embedded bronze bushings?
While both are self-lubricating, graphite iron is more suitable for high-load or dirty environments. Bronze is better for continuous rotation and quieter operation.

Q8: Can these bushings be used in outdoor or harsh environments?
Yes. Graphite iron bushings are resistant to dust, moderate moisture, and abrasive conditions, though for marine or high-corrosion applications, coated or bronze bushings may be more suitable.
