Premium Quality Sintered Bushing

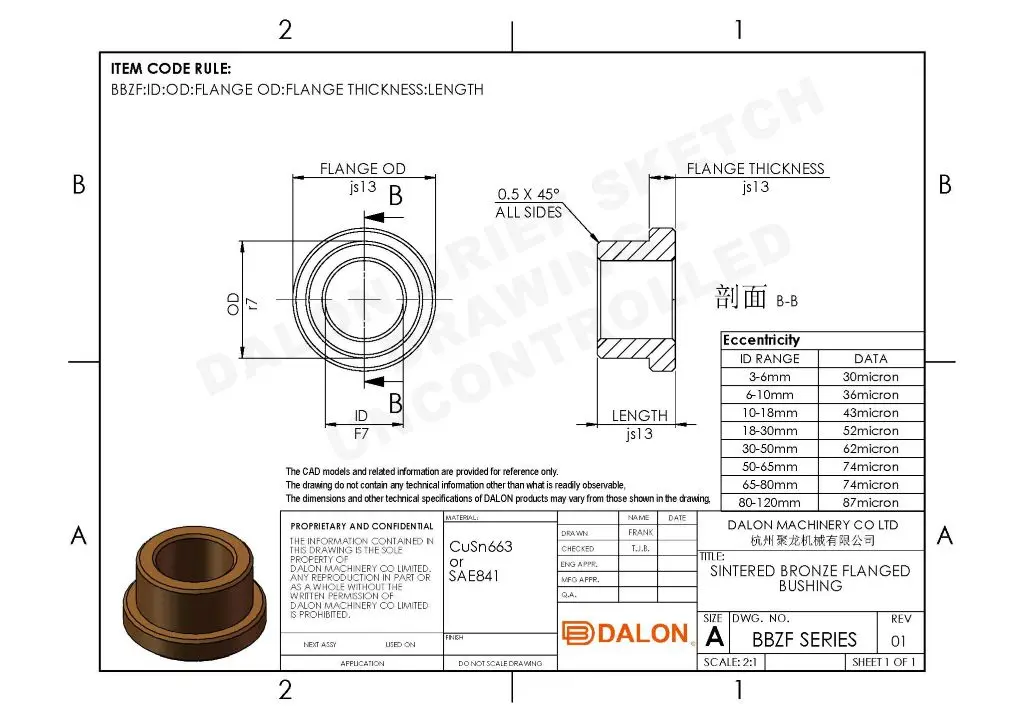

| I.D.(d) | 14 |
| I.D. (d1) | |
| O.D. (D) | 20 |
| O.D. (D1) | |
| Length (L) | 20 |
| Flange Dia. (fd) | 25 |
| Flange Thickness (fl) | 3 |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 25.00 |
| Minimum Order Qty | 40KGS |

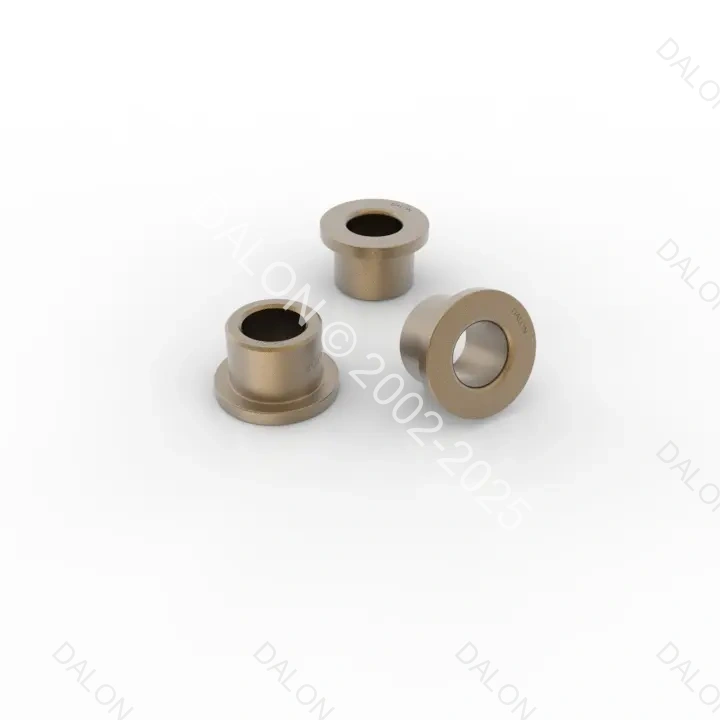

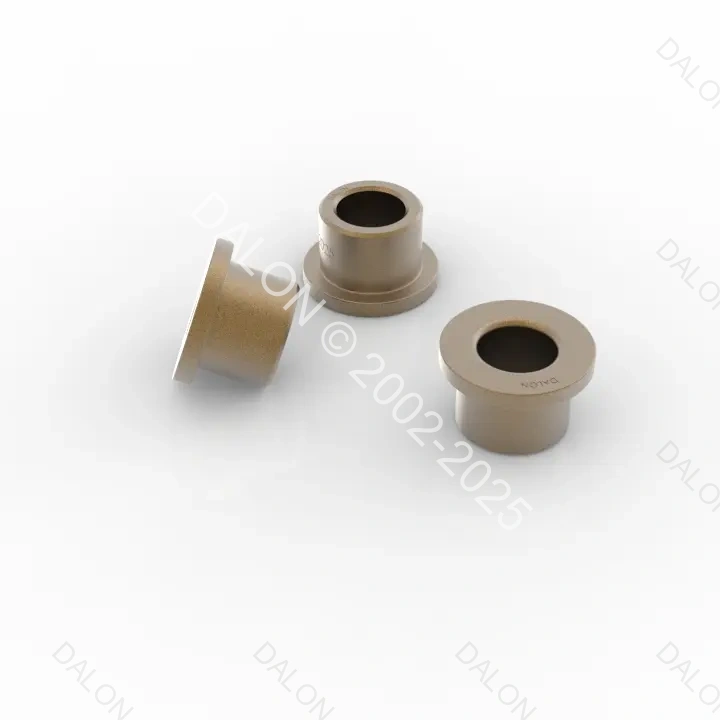

DALON’s sintered bronze flange bushing 14×20×25×3×20 mm is a precision-engineered, self-lubricating sleeve bearing with an integrated flange. Designed for efficient mounting and axial load support, this flange bushing is ideal for applications where precise alignment and structural retention are crucial.
Manufactured through powder metallurgy, it delivers high porosity for excellent oil retention and maintenance-free performance under moderate rotational speeds and loads.
Dimensions:
• Inner Diameter (ID): 14 mm
• Outer Diameter (OD): 20 mm
• Total Length: 25 mm
• Flange Thickness: 3 mm
• Length Without Flange: 20 mm
Material: Sintered bronze (CuSn-based alloy)
Self-lubricating with uniform oil distribution
High resistance to wear and corrosion
Compact, lightweight, and easy to install
Designed for press-fit mounting and axial retention
Electric motors and gear reducers
Industrial automation equipment
Agricultural machinery shaft supports
Pneumatic cylinders and solenoid valves
Rotary joints and mechanical linkages
Precision shafts with axial movement restrictions
With over two decades of expertise, DALON is a leading ISO 9001:2015-certified manufacturer of sintered flange bushings, offering reliable, ready-to-fit components to OEM clients worldwide.
Our 14×20×25×3×20 mm bronze flange bushings are ideal for compact designs requiring both radial and axial load support. We offer engineering support for custom tolerances (e.g., ISO H7/h9), flange variations, lubrication types, and fit optimization based on shaft material and speed.
Whether you need standard or fully customized bronze bushings, DALON ensures consistent quality and long-lasting performance for your motion systems.
Q1: What is the flange used for on this bushing?
The flange acts as a stop for positioning and helps handle axial loads, preventing displacement during rotation.
Q2: Can it be used without external lubrication?
Yes. The bushing is impregnated with lubricating oil and is designed for self-lubricating, maintenance-free use.
Q3: Is this flange bushing suitable for vertical mounting?
Yes. The flange provides axial retention, making it suitable for both horizontal and vertical mounting positions.
Q4: Can it be used in wet or dirty environments?
It’s designed for general industrial use. For harsh conditions, we offer sealed or specialty-coated versions upon request.
Q5: Is customization available for flange size or thickness?
Absolutely. DALON supports full OEM customization for flange geometry, wall thickness, and special fit tolerances.
Q6: What types of equipment commonly use flange bushings?
Flanged bushings are widely used in gear motors, linear actuators, automation assemblies, and agricultural drive components.
The versatility of SINTERED BRONZE BUSHING 14X20X25X3X20 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 14X20X25X3X20 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 14X20X25X3X20, designed to meet your specific application requirements.
