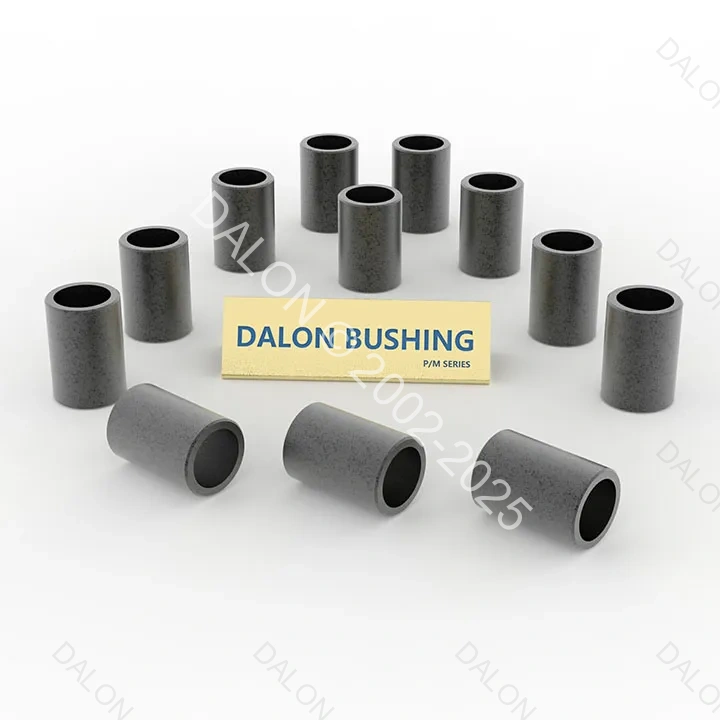

SINTERED IRON BUSHING 06X10X10

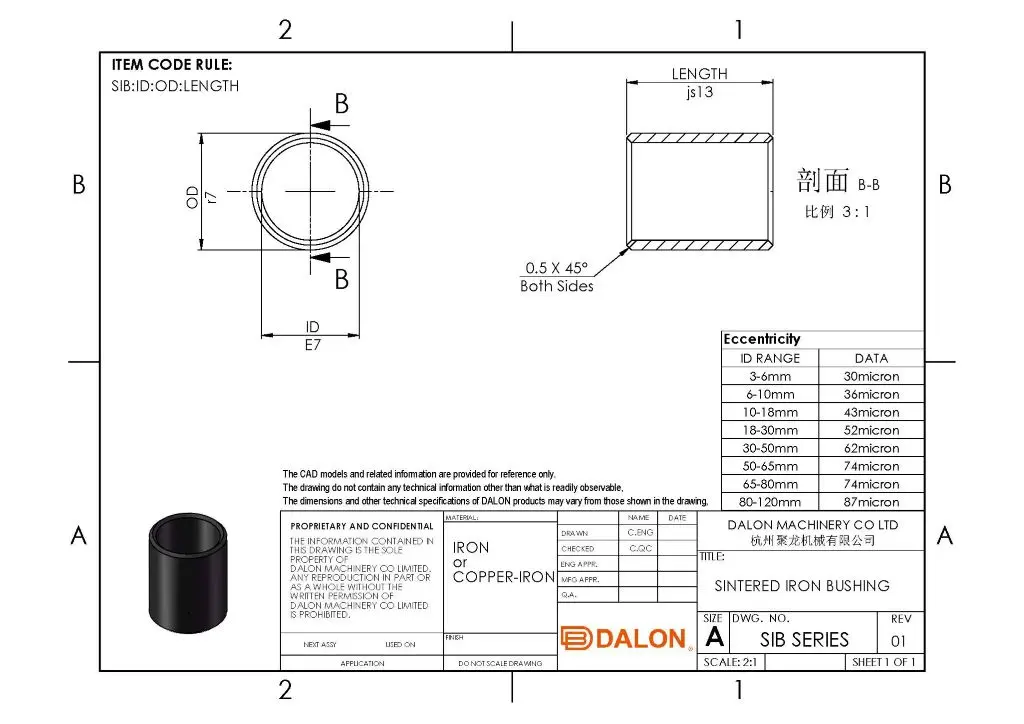

06×10×10 mm graphite bushing, made from sintered iron infused with graphite, is a compact and durable self-lubricating sleeve bearing designed for precision assemblies that require low-friction and dry-running support. The integrated graphite acts as a solid lubricant, delivering stable performance even under dry or low-lubrication conditions. This type of bushing is ideal for small electric motors, hand tools, printers, and compact mechanisms where grease or oil lubrication is not feasible. Dimensional Specifications (mm) Inner Diameter (ID): 6 Outer Diameter (OD): 10 Length: 10 Material: Sintered iron with graphite (self-lubricating) Type: Plain cylindrical sleeve bushing Key Features Self-lubricating: Uses embedded graphite for long-lasting lubrication Compact design: Ideal for tight mechanical assemblies High wear resistance: Durable under moderate load and speed Dry-running capability: No oil required for standard operation Cost-effective alternative to bronze in light-duty applications Applications Small electric motors and fans Office equipment and printers Power tools and portable devices Home appliances and vending units Light-load mechanical linkages Packaging and electronics mechanisms Why Choose DALON As a global supplier of sintered components, DALON manufactures graphite-impregnated iron bushings under strict ISO 9001:2015 quality control. Our bushings are engineered to deliver dimensional precision, consistent lubrication, and extended life for a wide range of industrial and consumer devices. DALON offers full customization: ID/OD/Length tolerances Graphite content and porosity adjustment Special coatings or surface treatments Batch production, private labeling, and packaging options FAQ – Frequently Asked Questions Q1: What does the graphite do in this bushing? Graphite serves as a dry lubricant, reducing friction without requiring oil or grease—even during startup or low-speed rotation. Q2: Can it be used in high-speed applications? It’s best suited for low- to moderate-speed, low- to medium-load applications. For higher speeds, consider bronze or bronze-graphite options. Q3: Is this bushing maintenance-free? Yes. The graphite within the pores of the iron provides continuous self-lubrication, even in dry-running conditions. Q4: Can I use this in vertical shafts? Yes. It functions well in both vertical and horizontal configurations. Q5: What’s the typical temperature range? Up to +180°C for standard graphite iron bushings. Custom versions available for higher temps. Q6: Can DALON provide custom dimensions or tolerances? Absolutely. We offer OEM customization for size, porosity, and graphite formulation.

SINTERED IRON BUSHING 06×10×10 mm – graphite-impregnated bushing for self-lubricating, compact shaft support in motors and tools.
