Premium Quality Sintered Bushing
| I.D.(d) | 3 |
| I.D. (d1) | |
| O.D. (D) | |
| O.D. (D1) | 6 |
| Length (L) | 7 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 1.00 |
| Minimum Order Qty | 40KGS |
DALON’s 3×6×7 mm sintered bronze spherical bushing is engineered for micro-scale precision movement in compact mechanical systems. Designed with a spherical outer surface and a sintered bronze body, this bushing offers self-aligning capability, self-lubrication, and excellent vibration damping — even in tight assembly spaces.
The porous bronze matrix is oil-impregnated through powder metallurgy, ensuring long-term operation without external lubrication. This type of bushing is ideal for reducing friction and misalignment in applications where precise shaft guidance is critical.

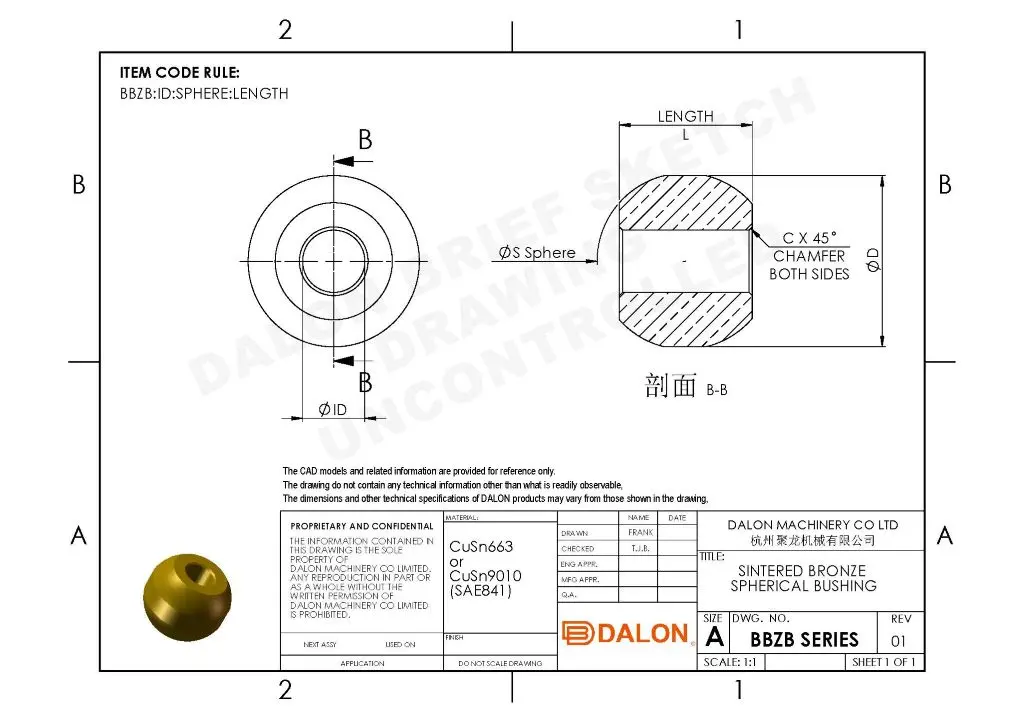

Dimensions:
• Inner Diameter (ID): 3 mm
• Outer Diameter (OD): 6 mm
• Length: 7 mm
Design: Spherical self-aligning outer surface
Material: Sintered bronze (oil-impregnated)
Performance:
• Maintenance-free self-lubrication
• Low-noise, low-friction operation
• Compact and lightweight
Ideal for high-frequency, low-load applications
Micro motors and sensor assemblies
Medical and lab automation devices
Optical equipment and instrumentation
Drones and precision robotics
Gearboxes in compact actuators
DALON is an ISO 9001:2015-certified manufacturer of precision sintered bushings and bearings. Our spherical bronze bushings are trusted by global OEMs for their alignment accuracy, lubrication stability, and manufacturing consistency.
With over two decades of experience in powder metallurgy, DALON supports full customization—whether you require special tolerances, oil grades, or size adjustments for custom mechanical assemblies.
Q1: What is the purpose of the spherical outer design?
The spherical shape allows the bushing to self-align within a housing, compensating for small misalignments during operation.
Q2: Can this bushing be used without external oil or grease?
Yes. It is fully oil-impregnated and requires no additional lubrication under normal conditions.
Q3: Is this bushing suitable for continuous rotation?
It’s ideal for oscillating or low-speed rotation in compact systems with light to moderate loads.
Q4: What environments is it best suited for?
It performs well in dry or low-moisture environments, especially where space is limited and frequent maintenance is not feasible.
Q5: Can I order this in custom dimensions or tolerances?
Yes. DALON offers OEM customization including dimensional tolerances, special lubricants, and packaging formats.
The versatility of SINTERED BRONZE SPHERICAL BUSHING 3X6X7 makes them ideal for numerous applications, including:
SINTERED BRONZE SPHERICAL BUSHING 3X6X7 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE SPHERICAL BUSHING 3X6X7, designed to meet your specific application requirements.
Our professional team is ready to assist with your inquiry for this Bronze Bushing – Spherical Sintered 3×6×7 mm.
